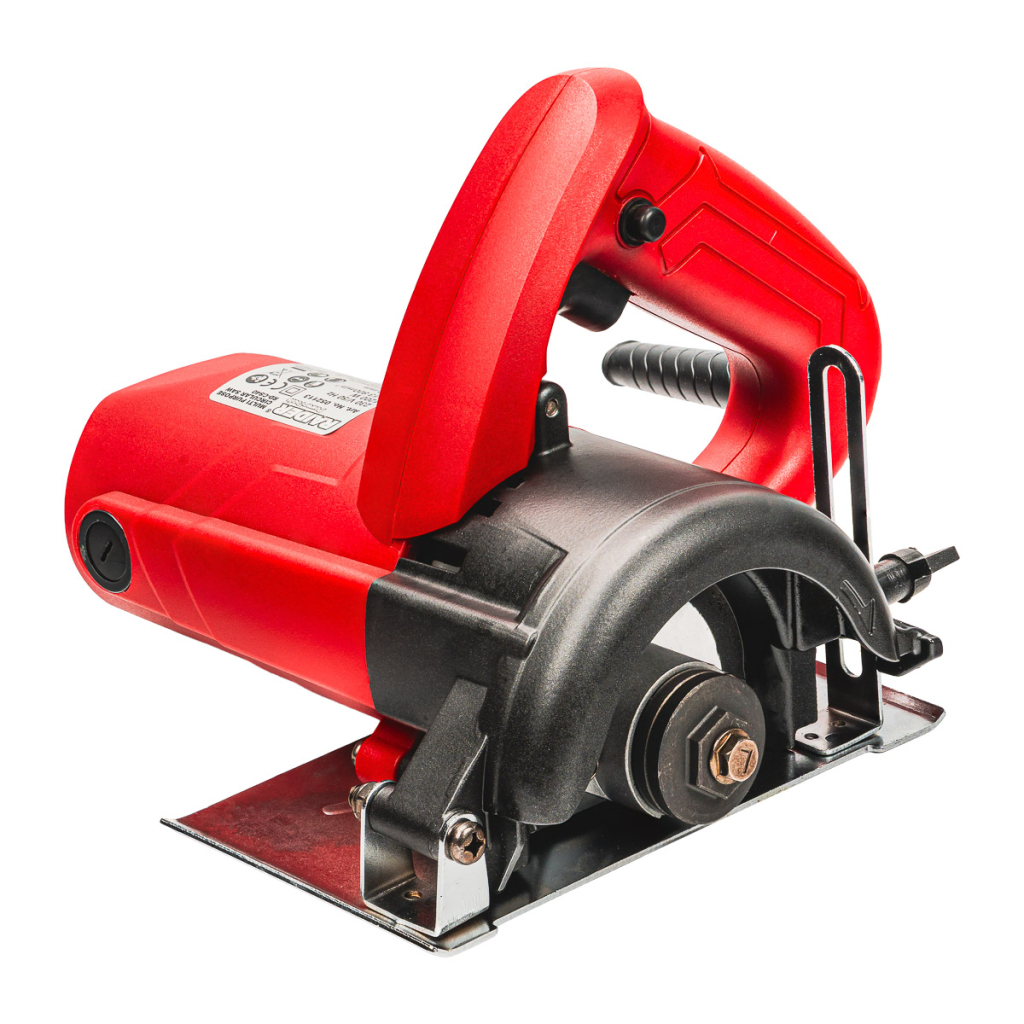

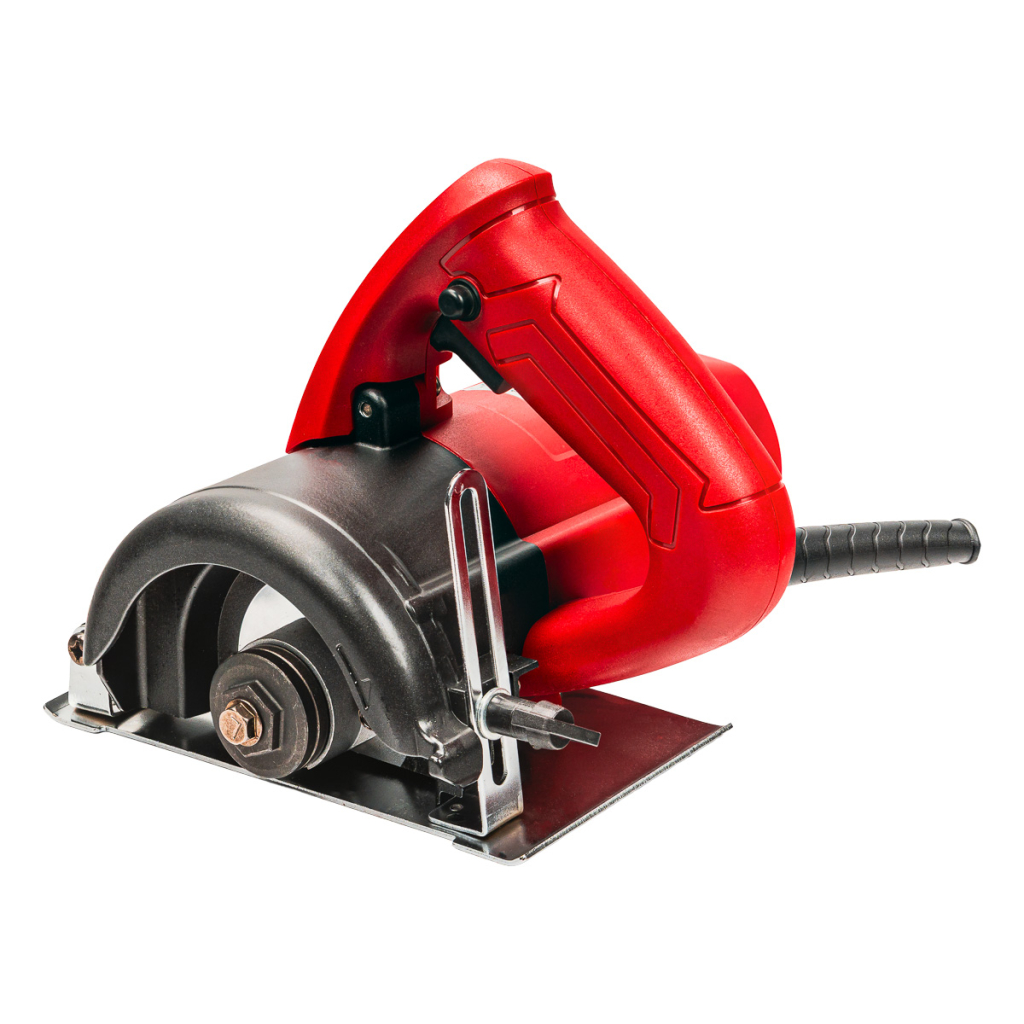

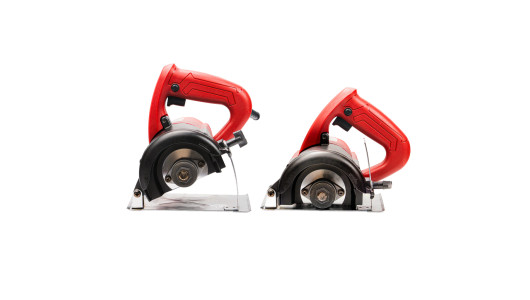

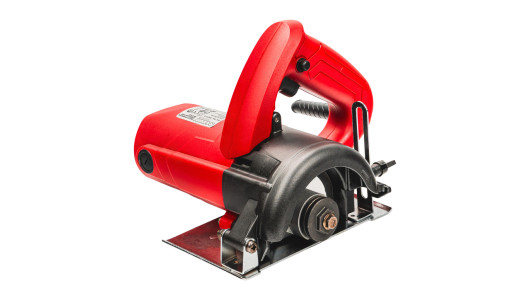

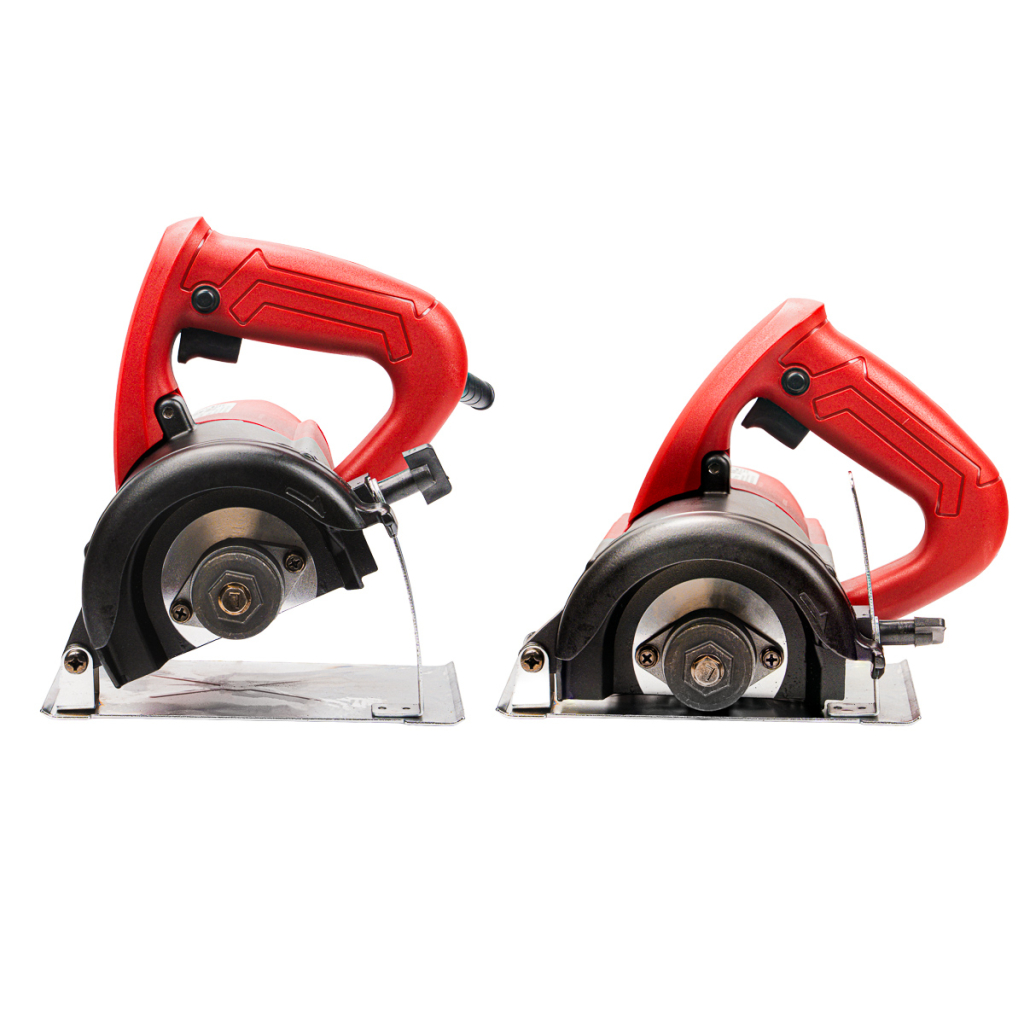

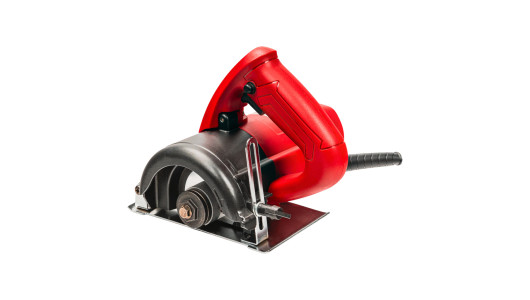

Multi Purpose Circular Saw Ø110mm 1200W RD-CS40

RD-CS40 features a powerful 1200 W electric motor
High rotational speed – 13,800 min⁻¹
Compatible with Ø110 mm cutting discs with a Ø20 mm bore
Maximum cutting depth of 31 mm at 90°
Suitable for cutting ceramic tiles, porcelain stoneware, marble, and natural stone
Low vibration level for greater operating comfort
Class II electrical insulation and IP21 protection rating
Compact and ergonomic design for precise handling

Article number: 052113
Barcode: 3800972046016
Brand: Raider Power Tools

Download:

Presenter

User manual

Compare

Description

The RD-CS40 handheld circular saw for stone and tiles is a compact and high-performance machine designed for precise cutting of ceramic tiles, porcelain stoneware, marble, natural and artificial stone, as well as other construction materials.

The machine is equipped with a powerful 1200 W electric motor, ensuring stable performance. Thanks to its high rotational speed of 13,800 min⁻¹, the saw delivers fast, clean, and precise cuts with minimal chipping of the material being processed.

The RD-CS40 is compatible with cutting discs featuring a maximum outer diameter of Ø110 mm and a 20 mm bore diameter, allowing the use of a wide range of diamond blades for various applications. It provides a maximum cutting depth of 31 mm at 90°, making it suitable for processing most standard tiles and cladding materials.

The machine is designed with a strong focus on operator safety and comfort. It features Class II electrical insulation, providing enhanced protection during operation, while its IP21 protection rating helps protect the internal components against solid particles and vertically falling water droplets.

The low vibration level of only 2.75 m/s² contributes to more comfortable operation and reduces user fatigue during extended use. The machine operates with a sound pressure level of 96 dB(A) and a sound power level of 105 dB(A); therefore, the use of appropriate personal protective equipment is recommended during operation.

Features

Main characteristics

Външен диаметър на диска (mm)	110 mm
Outer disc diameter (mm)	110 mm
Вътрешен диаметър на диска (mm)	20 mm
Inner disc diameter (mm)	20 mm
Лазер	Не
Laser	No
Макс. дълбочина на рязане при 90° (mm)	31 mm
Maximum cutting depth @ 90° (mm)	31 mm
Макс. обороти без натоварване (min-1)	13800 min-1
Maximum no- load speed (min-1)	13800 min-1
Номинална мощност (W)	1200 W
Rated input power (W)	1200 W
Тип захранване	Мрежово
Rated voltage type	Corded - Electrical Grid
