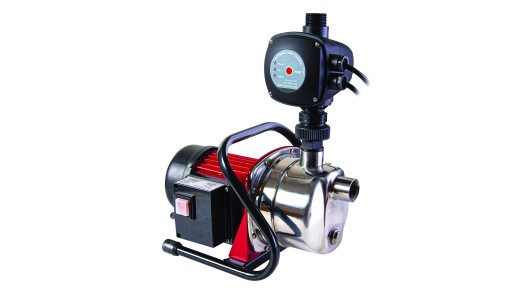

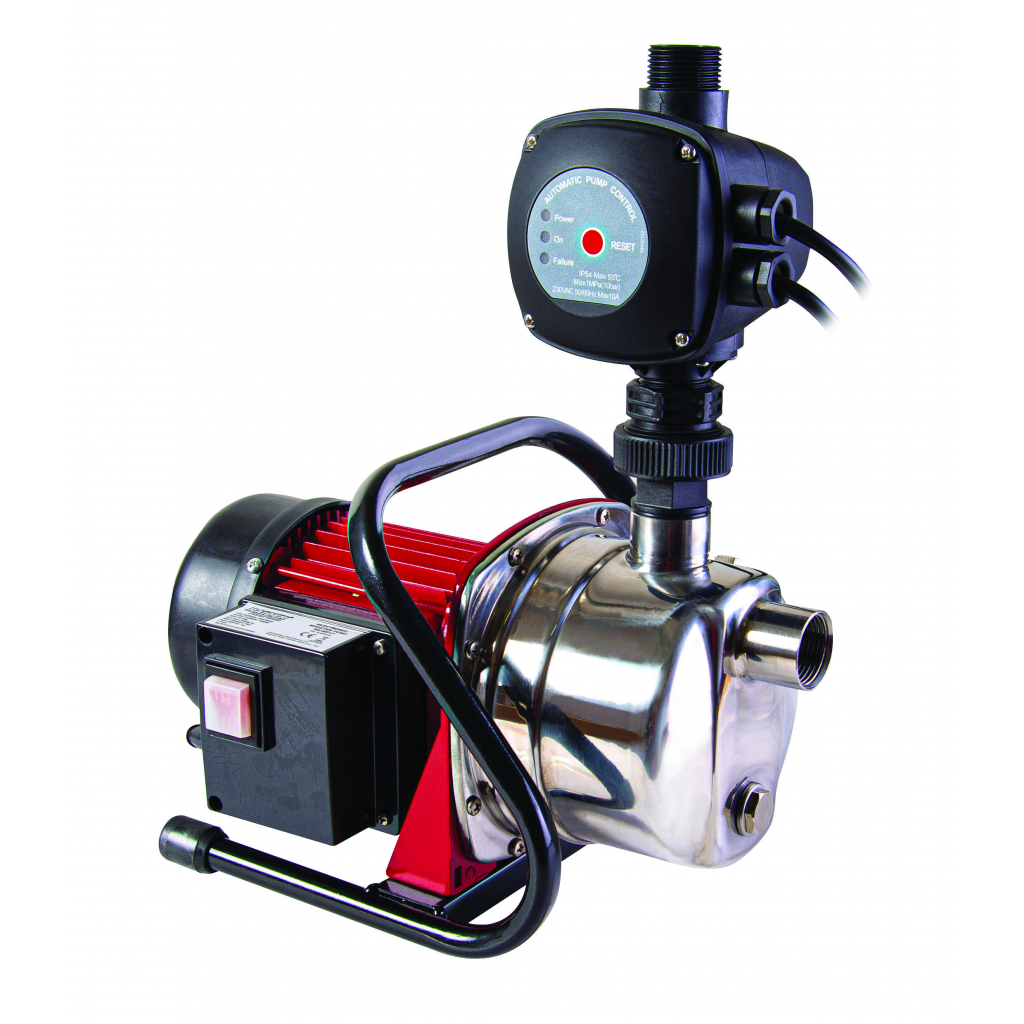

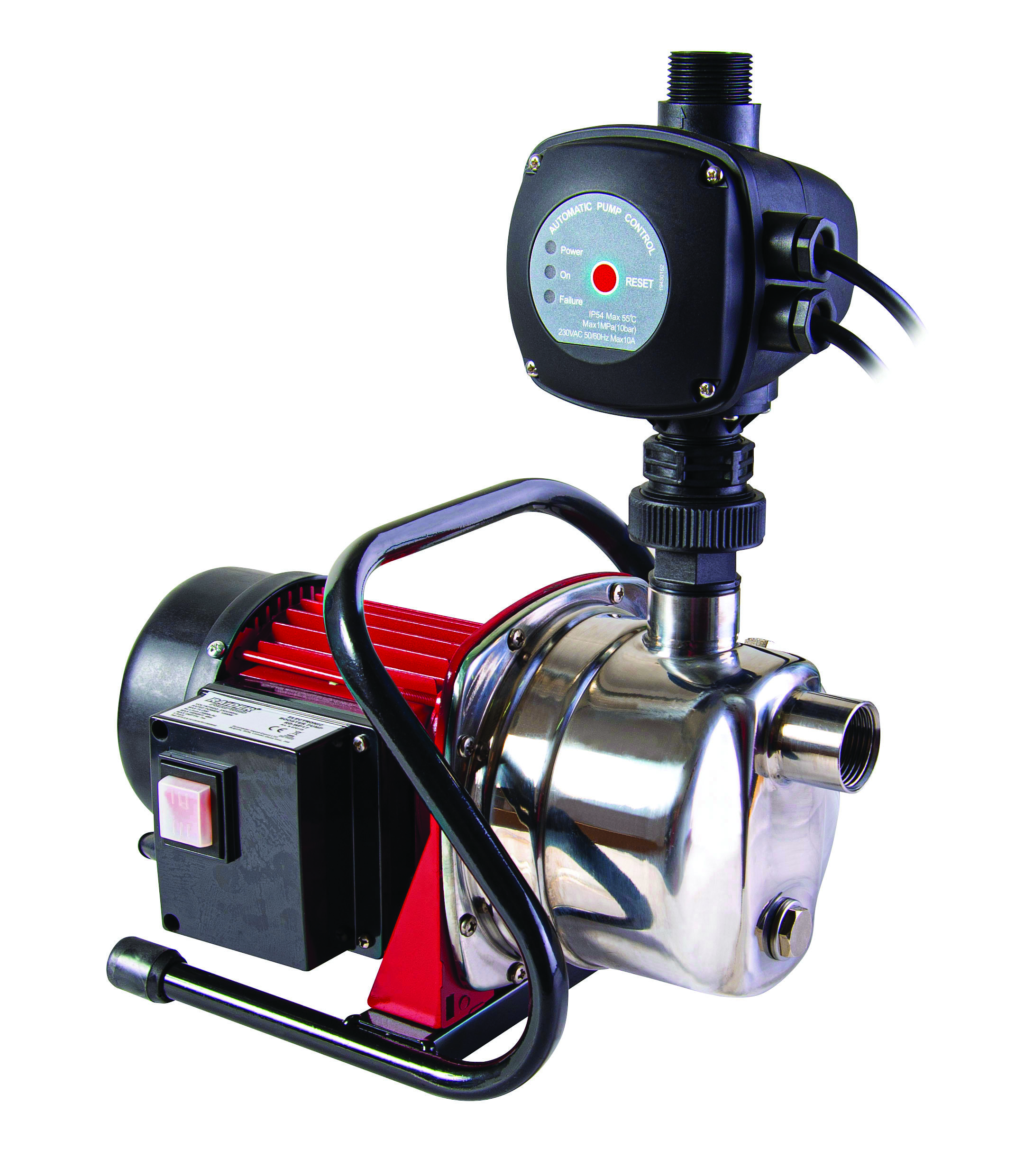

Electronic booster pump 1200W 1” 64L/min RD-WP17
Electronic booster pump 1200W 1” 64L/min RD-WP17
- Electronic water shortage protection
- Stainless steel housing
Article number: 070119
Barcode: 3800123158353
Brand: Raider Garden Tools
Barcode: 3800123158353
Brand: Raider Garden Tools
Description
The Raider Electronic Pressure Switch RD-WP17 is an electronic pressure controlled centrifugal pump. It is intended for houses and other objects, whose water supply is provided by its own source.
The pressure switch switches the pump on and off automatically, depending on the water pressure in the pipeline. It successfully replaces the classic hydrophore system with its more sophisticated support and larger dimensions.
Maximum water flow rate 64 l / min
Maximum head height 48 m
Stainless steel housing
The pressure switch switches the pump on and off automatically, depending on the water pressure in the pipeline. It successfully replaces the classic hydrophore system with its more sophisticated support and larger dimensions.
Features
Main characteristics
| Дължина на кабела (m) | 1.5 m |
| Cable length (m) | 1.5 m |
| Макс. дебит (l/h) | 3840 l/h |
| Maximum delivery rate (l/h) | 3840 l/h |
| Макс. дълбочина на засмукване (m) | 7 m |
| Maximum suction depth (m) | 7 m |
| Макс. напор (m) | 48 m |
| Maximum delivery height (m) | 48 m |
| Макс. работно налягане (bar) | 4.8 bar |
| Maximum working pressure (bar) | 4.8 bar |
| Напорен отвор (") | 1 " |
| Discharge port (") | 1 Inch |
| Номинална мощност (W) | 1200 W |
| Rated input power (W) | 1200 W |
| Тип захранване | Мрежово |
| Rated voltage type | Corded - Electrical Grid |
| Материал на задвижващия вал | Стомана |
| Drive shaft material | Steel |
| Материал на помпата | Метал |
| Pump material | Metal |
| Смукателен отвор (") | 1 |
| Suction apature (") | 1 |
